PyTorch and Computer Vision

Some libraries to be aware of:

torchvision central library for datasets, model architecture, and image transformations often used for computer vision problems
torchvision.datasets bunch of datasets for computer vision
torchvision.models bunch of models for computer vision
torchvision.transforms common image transformations (turn into numbers, processed, augmented)

import torch
from torch import nn

import torchvision
from torchvision import datasets
from torchvision.transforms import ToTensor

import matplotlib.pyplot as plt
print(f"PyTorch version: {torch.__version__}\ntorchvision version: {torchvision.__version__}")

Output:

PyTorch version: 2.9.0+cu126
torchvision version: 0.24.0+cu126

device = 'cuda' if torch.cuda.is_available() else 'cpu'

# Setup training dataset with torchvision
train_data = datasets.FashionMNIST(
  root="data",
  train=True,
  download=True,
  transform=ToTensor(), # can transform the images from their PIL format to Torch tensors
  target_transform=None # cant transform the labels
)

# Setup testing data
test_data = datasets.FashionMNIST(
  root="data",
  train=False,
  download=True,
  transform=ToTensor()
)

image, label = train_data[0]
print(image.shape, label)
print(len(train_data.data), len(train_data.targets), len(test_data.data), len(test_data.targets))
print(len(train_data.classes))

Output:

torch.Size([1, 28, 28]) 9
60000 60000 10000 10000
10

import matplotlib.pyplot as plt

image, label = train_data[0]

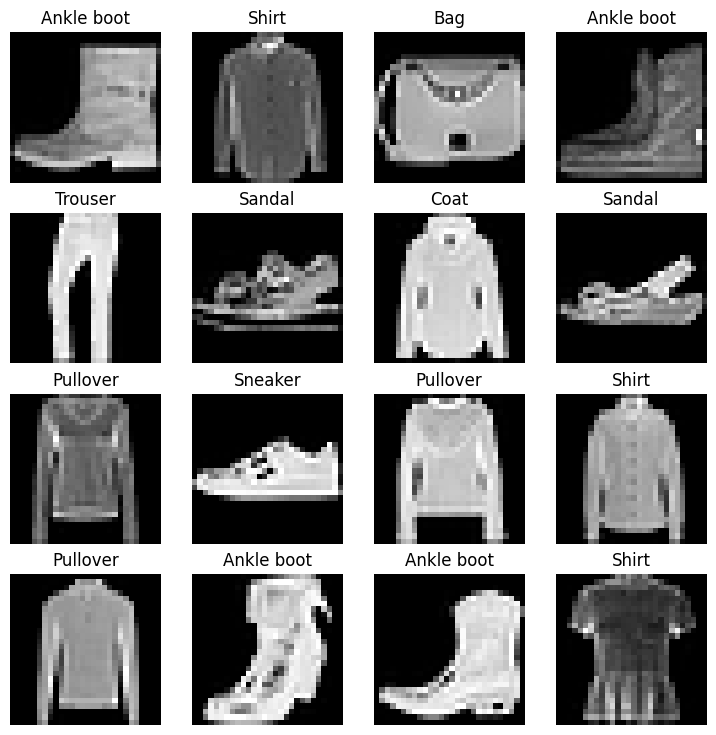

# Plot more images
torch.manual_seed(42)
fig = plt.figure(figsize=(9, 9))
rows, cols = 4, 4
for i in range(1, rows * cols + 1):
    random_idx = torch.randint(0, len(train_data), size=[1]).item()
    img, label = train_data[random_idx]
    fig.add_subplot(rows, cols, i)
    plt.imshow(img.squeeze(), cmap="gray")
    plt.title(train_data.classes[label])
    plt.axis(False);

Output:

<Figure size 900x900 with 16 Axes>

Conv2d Documentation

Performs a convolution on the data. Can check out https://github.com/vdumoulin/conv_arithmetic/blob/master/README.md

in_channels refers to the number of channels the input has (in RGB , that 3)
out_channels refers to the number channels we want to end up with
kernel_size is the height/width (can be a tuple) of the kernel to run convolutions with
stride is the horizontal/vertical “jump” between areas in the image to run convolutions on
padding is the amount of padding around an image. useful to catch features in the edges and corners of the image
dilation is the spacing of the convolution itself

The number of kernels in a single conv2d layer is the number of input_channels * output_channels because for every output channel, we need one kernal per input channel.

# Prepare Data
from torch.utils.data import DataLoader
import torchmetrics, mlxtend

# device = 'cuda' if torch.cuda.is_available() else 'cpu'
device = 'cpu'

BATCH_SIZE = 32
LEARNING_RATE = 0.2
EPOCHS = 100

train_dl = DataLoader(train_data, batch_size=BATCH_SIZE, shuffle=True)
test_dl = DataLoader(test_data, batch_size=BATCH_SIZE, shuffle=True)

# Model
class FashionMNISTClassifier(nn.Module):
  def __init__(self, device):
    super().__init__()

    self.conv0 = nn.Conv2d(in_channels=1, out_channels=10, kernel_size=3, stride=2, padding=1, device=device)
    self.conv1 = nn.Conv2d(in_channels=10, out_channels=10, kernel_size=3, stride=2, padding=1, device=device)
    self.conv2 = nn.Conv2d(in_channels=10, out_channels=10, kernel_size=3, stride=2, padding=1, device=device)
    self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
    self.relu = nn.ReLU()
    self.softmax = nn.Softmax()

  def forward(self, x):
    x = self.relu(self.conv0(x))
    x = self.relu(self.conv1(x))
    x = self.avgpool(self.conv2(x))
    return x.squeeze()

model = FashionMNISTClassifier(device)
loss_fn = torch.nn.CrossEntropyLoss()
opt = torch.optim.SGD(model.parameters(), lr=LEARNING_RATE)

def compute_pred_accuracy(y_pred, y):
  y_softmax = torch.softmax(y_pred, dim=1)
  return sum(torch.eq(y_softmax.argmax(dim=1), y)) / len(y)

def compute_accuracy(model, dataloader):
  return sum(compute_pred_accuracy(model(x_b.to(device)), y_b.to(device)) for x_b, y_b in dataloader) / len(dataloader)

def train(model, train_dl, opt, loss_fn):
  model.train()
  losses = []
  training_acc = []
  for x_b, y_b in train_dl:
    # load batch into GPU
    x_b = x_b.to(device)
    y_b = y_b.to(device)

    # Forward
    pred = model(x_b) # get prediction logits (no softmax + log + nll)
    loss = loss_fn(pred, y_b)

    # Log accuracies
    losses.append(loss)
    training_acc.append(compute_pred_accuracy(pred, y_b))

    opt.zero_grad()
    loss.backward()
    opt.step()

  print(f"Training loss {sum(losses) / len(losses)} | TRAIN ACC {sum(training_acc) / len(training_acc)}")

def eval(model, test_dl):
  model.eval()
  with torch.inference_mode():
    test_acc = compute_accuracy(model, test_dl)

    print(f"====== TEST ACC {test_acc} ======")


# training loop
for e in range(EPOCHS):
  train(model, train_dl, opt, loss_fn)

  # Only evaluate after 10 epochs
  if e % 10 == 0:
    eval(model, test_dl)

Output:

Training loss 1.081870198249817 | TRAIN ACC 0.6086833477020264
====== TEST ACC 0.7177516222000122 ======
Training loss 0.695329487323761 | TRAIN ACC 0.7548333406448364
Training loss 0.6107842326164246 | TRAIN ACC 0.7808499932289124
Training loss 0.5636925101280212 | TRAIN ACC 0.7980833053588867
Training loss 0.5310357213020325 | TRAIN ACC 0.8095166683197021
Training loss 0.5095382332801819 | TRAIN ACC 0.8185333609580994
Training loss 0.4920312166213989 | TRAIN ACC 0.8248166441917419
Training loss 0.47657620906829834 | TRAIN ACC 0.8297833204269409
Training loss 0.4631468951702118 | TRAIN ACC 0.8347833156585693
Training loss 0.4530208706855774 | TRAIN ACC 0.8394833207130432
Training loss 0.4471907615661621 | TRAIN ACC 0.8399999737739563
====== TEST ACC 0.8336661458015442 ======
Training loss 0.44009098410606384 | TRAIN ACC 0.8425999879837036
Training loss 0.434322714805603 | TRAIN ACC 0.8448166847229004
Training loss 0.43351295590400696 | TRAIN ACC 0.8457666635513306
Training loss 0.42730405926704407 | TRAIN ACC 0.8481166958808899
Training loss 0.4250723123550415 | TRAIN ACC 0.8486499786376953
Training loss 0.4233935475349426 | TRAIN ACC 0.8488666415214539
Training loss 0.4202239215373993 | TRAIN ACC 0.8490999937057495
Training loss 0.4178701937198639 | TRAIN ACC 0.8524333238601685
Training loss 0.41460442543029785 | TRAIN ACC 0.8515666723251343
Training loss 0.41286197304725647 | TRAIN ACC 0.853950023651123
====== TEST ACC 0.8458466529846191 ======
Training loss 0.411700963973999 | TRAIN ACC 0.8537166714668274
Training loss 0.4102802872657776 | TRAIN ACC 0.8554666638374329
Training loss 0.4081258773803711 | TRAIN ACC 0.8546833395957947
Training loss 0.40706920623779297 | TRAIN ACC 0.8548833131790161
Training loss 0.405464231967926 | TRAIN ACC 0.8557000160217285
Training loss 0.4034602642059326 | TRAIN ACC 0.8566166758537292
Training loss 0.403064489364624 | TRAIN ACC 0.8551333546638489
Training loss 0.4011331796646118 | TRAIN ACC 0.8557166457176208
Training loss 0.40126827359199524 | TRAIN ACC 0.857366681098938
Training loss 0.3994111120700836 | TRAIN ACC 0.8582333326339722
====== TEST ACC 0.8529353141784668 ======
Training loss 0.39841407537460327 | TRAIN ACC 0.8587499856948853
Training loss 0.39885827898979187 | TRAIN ACC 0.8589000105857849
Training loss 0.3965250849723816 | TRAIN ACC 0.859083354473114
Training loss 0.3982420563697815 | TRAIN ACC 0.8568500280380249
Training loss 0.3948778510093689 | TRAIN ACC 0.8590499758720398
Training loss 0.3953261077404022 | TRAIN ACC 0.8588833212852478
Training loss 0.3943737745285034 | TRAIN ACC 0.8593500256538391
Training loss 0.39554449915885925 | TRAIN ACC 0.859333336353302
Training loss 0.3919506072998047 | TRAIN ACC 0.8591499924659729
Training loss 0.3925478756427765 | TRAIN ACC 0.8606333136558533
====== TEST ACC 0.8492411971092224 ======
Training loss 0.3924988806247711 | TRAIN ACC 0.8609166741371155
Training loss 0.3918140232563019 | TRAIN ACC 0.8603000044822693
Training loss 0.39049583673477173 | TRAIN ACC 0.861466646194458
Training loss 0.39042791724205017 | TRAIN ACC 0.8614166378974915
Training loss 0.39001408219337463 | TRAIN ACC 0.8612333536148071
Training loss 0.3873157799243927 | TRAIN ACC 0.8630666732788086
Training loss 0.3883238136768341 | TRAIN ACC 0.8607833385467529
Training loss 0.38839957118034363 | TRAIN ACC 0.8617333173751831
Training loss 0.38852041959762573 | TRAIN ACC 0.8617333173751831
Training loss 0.38731157779693604 | TRAIN ACC 0.8622000217437744
====== TEST ACC 0.8392571806907654 ======
Training loss 0.3878650963306427 | TRAIN ACC 0.8618166446685791
Training loss 0.3870152533054352 | TRAIN ACC 0.8619499802589417
Training loss 0.3874465227127075 | TRAIN ACC 0.8628666400909424
Training loss 0.38585853576660156 | TRAIN ACC 0.8618166446685791
Training loss 0.3840395212173462 | TRAIN ACC 0.8636166453361511
Training loss 0.3863951861858368 | TRAIN ACC 0.8621333241462708
Training loss 0.38429534435272217 | TRAIN ACC 0.8621833324432373
Training loss 0.3837733864784241 | TRAIN ACC 0.8625166416168213
Training loss 0.38455045223236084 | TRAIN ACC 0.8627499938011169
Training loss 0.38421109318733215 | TRAIN ACC 0.8626166582107544
====== TEST ACC 0.8521365523338318 ======
Training loss 0.38454991579055786 | TRAIN ACC 0.8625333309173584
Training loss 0.3840777575969696 | TRAIN ACC 0.8635833263397217
Training loss 0.38363704085350037 | TRAIN ACC 0.862766683101654
Training loss 0.38337141275405884 | TRAIN ACC 0.8638833165168762
Training loss 0.3833909034729004 | TRAIN ACC 0.8634999990463257
Training loss 0.38224470615386963 | TRAIN ACC 0.8641666769981384
Training loss 0.3829042911529541 | TRAIN ACC 0.8633833527565002
Training loss 0.3835487365722656 | TRAIN ACC 0.8628333210945129
Training loss 0.3816915452480316 | TRAIN ACC 0.8644833564758301
Training loss 0.3817364275455475 | TRAIN ACC 0.8638499975204468
====== TEST ACC 0.8504393100738525 ======
Training loss 0.38077405095100403 | TRAIN ACC 0.8648999929428101
Training loss 0.38126617670059204 | TRAIN ACC 0.8648166656494141
Training loss 0.37974971532821655 | TRAIN ACC 0.8647666573524475
Training loss 0.38004031777381897 | TRAIN ACC 0.8650500178337097
Training loss 0.38153892755508423 | TRAIN ACC 0.8627166748046875
Training loss 0.38082727789878845 | TRAIN ACC 0.8640000224113464
Training loss 0.37907955050468445 | TRAIN ACC 0.8656499981880188
Training loss 0.3805506229400635 | TRAIN ACC 0.8649500012397766
Training loss 0.3795810639858246 | TRAIN ACC 0.8653166890144348
Training loss 0.3802793622016907 | TRAIN ACC 0.8648999929428101
====== TEST ACC 0.8580271601676941 ======
Training loss 0.37931451201438904 | TRAIN ACC 0.8648166656494141
Training loss 0.3807264268398285 | TRAIN ACC 0.8635333180427551
Training loss 0.3797339200973511 | TRAIN ACC 0.8635833263397217
Training loss 0.378546804189682 | TRAIN ACC 0.8651999831199646
Training loss 0.3781156837940216 | TRAIN ACC 0.8642666935920715
Training loss 0.37969329953193665 | TRAIN ACC 0.864633321762085
Training loss 0.3787648677825928 | TRAIN ACC 0.8643666505813599
Training loss 0.37790387868881226 | TRAIN ACC 0.8649666905403137
Training loss 0.37813252210617065 | TRAIN ACC 0.8657666444778442
Training loss 0.37809523940086365 | TRAIN ACC 0.8655999898910522
====== TEST ACC 0.857627809047699 ======
Training loss 0.3777090907096863 | TRAIN ACC 0.8641166687011719
Training loss 0.3774780333042145 | TRAIN ACC 0.8649666905403137
Training loss 0.3776569664478302 | TRAIN ACC 0.8656499981880188
Training loss 0.37669047713279724 | TRAIN ACC 0.8651833534240723
Training loss 0.37804093956947327 | TRAIN ACC 0.8640499711036682
Training loss 0.37611308693885803 | TRAIN ACC 0.8665666580200195
Training loss 0.37766605615615845 | TRAIN ACC 0.8658666610717773
Training loss 0.37646251916885376 | TRAIN ACC 0.8651999831199646
Training loss 0.3772161900997162 | TRAIN ACC 0.8646833300590515

Explorer

PyTorch Computer Vision

PyTorch and Computer Vision

Conv2d Documentation

Graph View

Table of Contents

Backlinks
